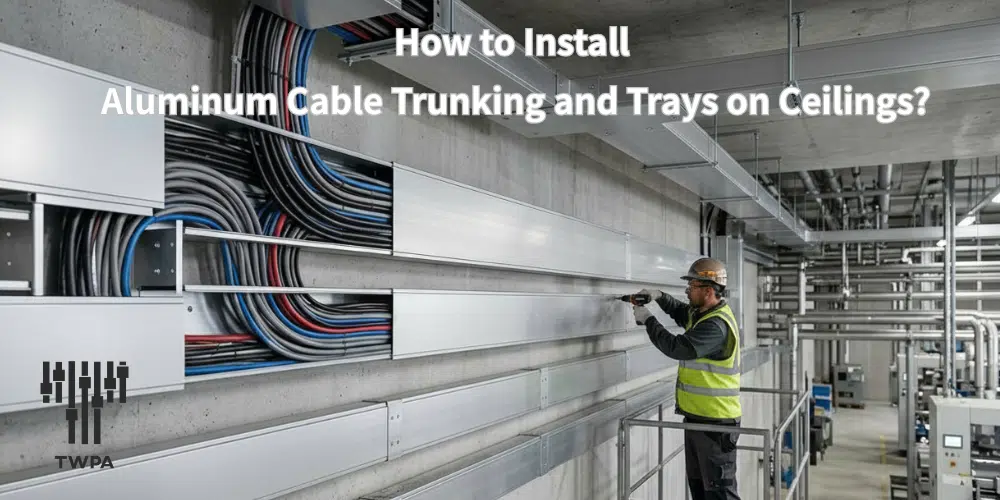

In factories, commercial offices, and large-scale industrial sites, aluminum cable trunking and trays are frequently suspended from ceilings to ensure that electrical wiring is routed neatly and safely.
This wiring method not only enhances aesthetic appeal but also ensures efficient maintenance while protecting electrical lines from damage. This article covers:
-
Why aluminum trays/trunking are ideal for ceiling installations
-
Step-by-step installation process and essential accessories
-
Crucial precautions during installation
-
Product advantages of TWPA
I. Why Choose Aluminum Cable Trunking and Trays?
Aluminum cable tray systems are highly favored in the engineering industry due to being lightweight, highly corrosion-resistant, and rustproof. Compared to traditional steel alternatives, aluminum does not oxidize easily in high-temperature or high-humidity environments. This makes it ideal for facilities requiring long-term operational stability, such as semiconductor fabs, food processing plants, textile mills, elevator machine rooms, and warehouses.
Key Advantages:
-
Lightweight Profile: Simplifies installation and minimizes the structural load on the ceiling.
-
Rust Resistance: Eliminates future maintenance and recoating overhead costs.
-
Professional Aesthetics: Delivers a sleek, clean look that keeps cable routing exceptionally organized.
-
High Versatility: Pairs seamlessly with various elbows, tees, and splicing connectors for flexible layouts.
II. Step-by-Step Ceiling Installation Guide
1. Confirm Routing Layout and Load Demands
Prior to installation, map out the cable pathway and calculate the total weight load. Based on cable volume and weight, select the appropriate tray width and support span distance. (The standard recommended span distance between supports is 1.2 to 1.5 meters).
2. Install Hangers and Support Brackets
Ceiling-mounted trays are typically suspended using the following methods:
-
Threaded Rod Support Systems: The most common approach; highly stable with exceptional load capacity.
-
L-Type or U-Type Brackets: Best suited for running paths along walls or inside compact equipment rooms.
-
Trapeze Hangers: Ideal for wide spans across large open spaces, facilitating overall cable layout.
Note: Hangers must be securely anchored into the concrete ceiling using expansion bolts or chemical anchors to guarantee absolute safety.
3. Secure the Aluminum Cable Tray Body
Hoist and place the aluminum cable tray sections onto the trapeze hangers or brackets, then fasten them using specialized splice plates (connector plates) and hardware kits.
Key Alignment Rules:
-
Ensure the tray runs remain perfectly straight without any noticeable elevation discrepancies between sections.
-
Leave appropriate thermal expansion gaps at joint junctions to prevent warping caused by thermal expansion and contraction.
4. Cable Pulling and Management
Once the tray framework is completely secured, proceed with pulling the power or control cables. It is highly recommended to use cable ties or clamps to maintain neat organization and segregate lines by voltage levels. Where necessary, install snap-on dust covers or waterproof lids to enhance protection.
III. Frequently Asked Questions (FAQ)
-
Q1: Do aluminum cable trays need to be grounded? Yes. If the tray carries power or control circuits, it must be properly bonded and grounded according to electrical codes to ensure human and equipment safety.
-
Q2: Can I mix different materials within the same tray run? Avoid direct contact between aluminum and steel components, as it triggers galvanic (electrochemical) corrosion. If they must cross, utilize non-conductive insulation spacers to isolate them.
-
Q3: Can aluminum trays carry heavy-duty cables? Absolutely. However, you must specify heavy-duty aluminum profiles with thicker side rails and decrease the support hanger span distance. When necessary, pair them with steel support structures to reinforce the integrity.
