In practical engineering and construction, it is common to encounter inconsistencies in the width of cable trays or ladders, especially when connecting main trunks to branch wiring of different sizes. Without the correct connection method, it not only compromises the aesthetic of the wiring but can also lead to structural instability and maintenance difficulties. This is where Reducer Plates become an indispensable professional accessory.
This article provides a comprehensive introduction to the purposes, installation methods, and selection key points of Reducer Plates, helping you quickly understand this critical component for connecting various sizes of aluminum cable trays and ladders.

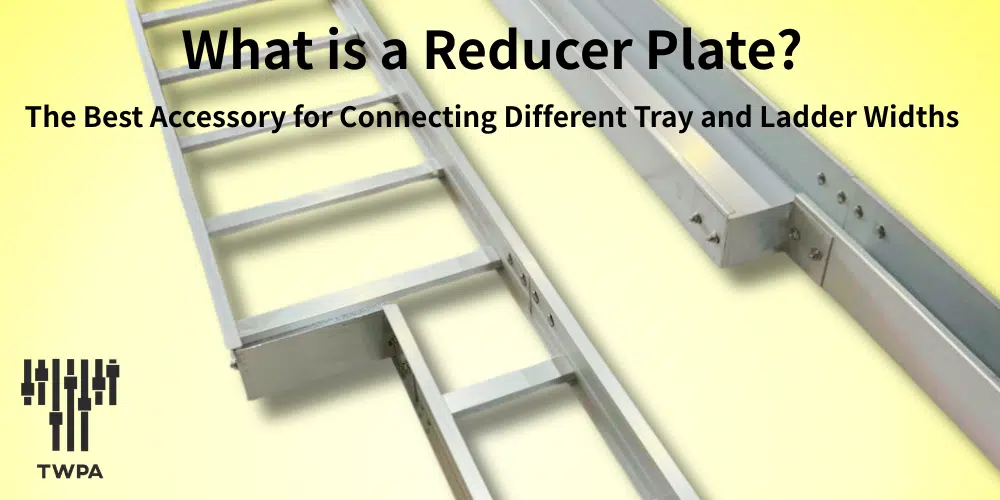

I. What is a Reducer Plate?
A Reducer Plate (also known as a Reducing Coupler or Width Reducer) is a specialized accessory used to connect two sections of aluminum cable trays or ladders with different widths. When a large main route needs to transition to a smaller branch size, or when wiring paths must be narrowed due to space constraints, Reducer Plates achieve a stable, aligned, and professional-looking connection.
II. Purposes and Advantages of Reducer Plates
-
Seamless Connection of Different Sizes Specialized reducer accessories allow for the easy transition between different widths of aluminum trays or ladders without the need for on-site cutting or modification, significantly saving construction time and labor costs.
-
Enhanced Structural Stability and Strength Designed to fit specific dimensions, Reducer Plates align perfectly with aluminum cable systems. When paired with original screws and splice plates, they ensure a secure structure that is resistant to loosening.
-
Professional Aesthetics and Ease of Maintenance Using Reducer Plates creates a consistent appearance in the wiring system, minimizing protrusions and height variances. This improves overall construction quality and facilitates easier future inspections and maintenance.
Note: All sizes are manufactured from high-quality aluminum alloy with an anodized surface finish to enhance rust resistance and durability, making them compatible with all TWPA aluminum tray and ladder systems.
III. Installation Methods
-
Verify Dimensions: Confirm the specifications and widths of the trays or ladders to be joined.
-
Select the Plate: Choose the corresponding Reducer Plate for the size transition.
-
Alignment: Align the two sections of the product with both ends of the Reducer Plate.
-
Fastening: Secure the connection using original screws, splice plates, and other matching accessories.
-
Final Check: Ensure all screws are tightened before installing the cover to complete the setup.
IV. Common Q&A: Application Scenarios
-
Q1: Which products are Reducer Plates compatible with? These products are suitable for aluminum cable trays and ladders, whether used in horizontal, vertical, or wall-mounted configurations.
-
Q2: Will it affect internal wiring? As long as the correct sizes are selected, the transition at the reduction point remains smooth, ensuring no negative impact on cable arrangement or conductor pressure.
