In industrial construction and electrical wiring projects, as equipment becomes more diverse and the volume of cables grows rapidly, effectively organizing, protecting, and supporting large cable runs has become a critical challenge. Cable Ladders are widely used cable support systems in factories and large-scale buildings, offering excellent ventilation and high load-bearing capacity, making them an indispensable infrastructure for industrial wiring.

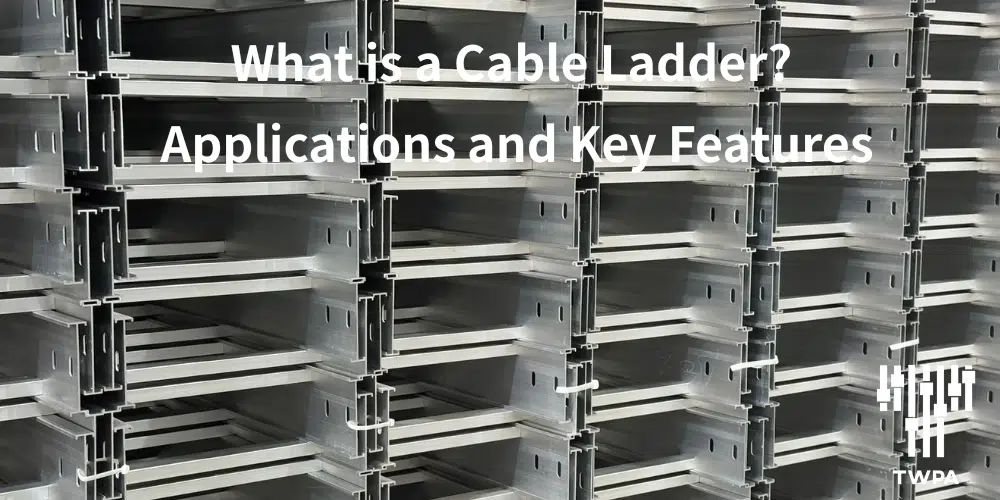

What is a Cable Ladder?
A Cable Ladder is an open-structure support system that resembles a ladder, typically consisting of two side rails connected by individual rungs. This design not only facilitates superior airflow—reducing the risk of cable overheating—but also allows for easy installation and maintenance. Cable ladders excel in scenarios requiring long-distance runs, high load capacities, and multi-layered wiring.
Common Industry Aliases
In the market, Cable Ladders are often referred to by various names depending on regional habits or project specifications:
-
Cable Tray Ladder
-
Ladder Racking
-
Ladder Type Cable Tray
-
Open-frame Cable Tray
Common Application Scenarios
Cable ladders are frequently found in the following environments:
-
Manufacturing plants and industrial processing zones.
-
Power control rooms and high-voltage substations.
-
Data centers and Information Distribution Centers (IDC).
-
Building basements and ceiling voids.
-
Suspended or elevated cable bridge systems.
-
Outdoor environments such as solar farms and wind power plants.
Comparison with Other Cable Management Systems
Compared to enclosed metal trunking or PVC ducts, cable ladders offer several distinct advantages:
-
Superior Heat Dissipation: The open structure promotes airflow, significantly lowering the risk of cable temperature rise.
-
Ease of Maintenance: Cables can be added or replaced from almost any direction with ease.
-
High Load-Bearing Strength: Ideal for heavy-duty power cables or long-span wiring requirements.
-
Material Efficiency: Lighter than fully enclosed structures, reducing the structural load on the building and lowering installation costs.
Materials and Specifications
Depending on the environment and load requirements, cable ladders are available in various materials:
-
Galvanized Steel: An economical choice common for indoor applications.
-
Hot-Dip Galvanized Steel: Best for outdoor or high-humidity locations.
-
Aluminum Alloy: A lightweight design with excellent natural corrosion resistance.
-
Stainless Steel: Suitable for highly corrosive or specialized environments, such as food processing or medical industries.
How to Choose the Right Cable Ladder?
When selecting a system, consider the following points:
-
Load Capacity: Confirm the total number and weight of cables to calculate the required strength.
-
Environment: Choose materials based on the installation site (e.g., rust-proofing for outdoor use).
-
Accessories: Plan for necessary components such as horizontal elbows, vertical risers, tees, and mounting brackets.
-
Installation Method: Evaluate the space for suspended (hanging) or wall-mounted configurations.
